Mini Slant Bed CNC Lathe TCK40 GSK Control Turning Center for Metal Parts Processing
The TCK40 series multifunctional CNC lathe adopts a box-shaped structure and strong cast iron (HT-300) for the bed, and is cast with one-piece casting technology. It is clamped and processed in one time by a high-precision machining center. Therefore, it has the characteristics of strong overall rigidity, good machine tool accuracy retention, and high reliability.
Standard Configuration:
1. Gsk CNC 980 TB32
2. A2-5 spindle unit
3. Taiwan screw/rail line
4. Row tool postx3
5. 6-inch hydraulic Chuck
6. 5.5kw servo main motor
Optional Configuration:
1. Spindle Unit A2-8/10-inch hydraulic Chuck
2. 8 - station turret/8 - station servo turret (TCK40)
3. 4 - station electric tool post
4. Hydraulic chuck
5. System: SYNTEL, Mitsubishi, Siemens, FANUC
6. Chain chip removal machine
Product Specification:
| PARAMETER ITEM | UNIT | TCK40 |
| Maximum swing diameter on bed | mm | Φ450 |
| Maximum cutting diameter bar | mm | Φ120 |
| Maximum cutting length | mm | 325 |
| X-axis travel | mm | 500 |
| Z-axis travel | mm | 325 |
| X-axis moving speed | mm/min | 20000 |
| Z-axis moving speed | mm/min | 20000 |
| Handwheel | mm | 0.001/0.01/0.1 |
| X, Z feed speed | mm/min | 0~5000 |
| X, Z manual feed speed | mm/min | 0~1260 |
| X-axis repeatability positioning accuracy | mm | 0.005 |
| X-axis positioning accuracy | mm | 0.01 |
| Z-axis repeatability positioning accuracy | mm | 0.006 |
| Z-axis positioning accuracy | mm | 0.015 |
| Spindle speed | rpm | 35-3000 |
| Maximum spindle torque | N.m | 35 |
| Spindle nose | | A2-5 (optional A2-6) |
| Spindle through hole diameter | mm | Φ52 |
| Hollow hydraulic chuck through hole diameter | mm | Φ40 |
| Chuck | | 6" (optional 8") |
| Number of tool holders | | 3 knife racks |
| Tool change time | s | 0.25 |
| Tool installation dimensions | mm | 20×20 |
| Borrowing tool holder installation diameter | mm | Φ25 |
| Main motor power | kw | 5.5 (4500rpm) |
| Main motor torque | N.m | 35 |
| X-axis feed motor power | kw | 1.5 |
| X-axis feed motor torque | N.m | 7.5 |
| Z-axis feed motor power | kw | 1.5 |
| Z-axis feed motor torque | | 5 |
| Coolant capacity | L | 200 |
| Motor type (1HP) | kw | 0.125 |
| Machine length*width*height | mm | 2250*1850*2000 |
| Machine weight | kg | 16000 |

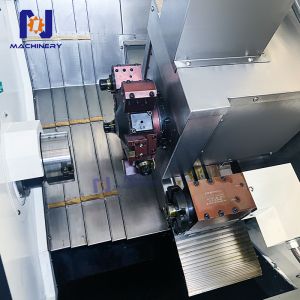

Product Display:
