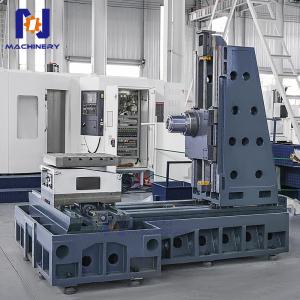

    Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers

    Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers
    • Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers
    • Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers
    • Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers
    • Buy cheap HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150 from wholesalers

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150

    Ask Lasest Price
    Brand Name : Zaozhuang NO.1
    Model Number : HMC500
    Certification : CE,ISO
    Price : 50000USD
    Payment Terms : T/T
    Supply Ability : 1000 sets/month
    Delivery Time : 15 days after getting the deposit.
    • Product Details
    • Company Profile

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150

    HMC500 Cnc Horizontal Milling Machine T-Type Cnc Horizontal Machining Center
    Product Description:
    The HMC500 is a inverted T-type horizontal machining center known for its high precision and efficiency in machining various parts. It features a horizontal layout with a transverse movement of the worktable, ensuring stable and reliable machining processes. With its robust machine body and rigid cast iron bed, the HMC800 can handle large workpieces and heavy loads. It is equipped with a high-speed spindle and a tool changer, enabling quick tool changes and enhancing production efficiency. The machine center also boasts multi-axis control capabilities, the worktable can rotate 360 degrees, enabling complex cutting operations and multi-sided machining.
    Standard Configuration:
    1.spindle unite:kenturn/OKADA/volis
    2.bearing:SKF/NACHI
    3.tool magazine:OKADA/AIMACH
    4.lead screw:HIWIN/PMI
    5.linear rails:HIWIN/PMI
    6.Optional Table: 1°-360°
    Product Specification:
    Item Model
    Unit
    HMC500(cross table)
    HMC500(Inverted structure)
    Size of worktable
    mm
    500*500
    500*500
    Table graduation
    mm
    1°*360
    1°*360
    Maximum load on table
    kg
    600
    600
    Number of worktables
    1
    1
    X/Y/Z rail width
    mm
    45/45/45
    45/45/45
    X/Y/Z screw diameter
    mm
    4012/5012/4012
    4012/5012/4012
    X/Y/Z Axis stroke
    mm
    1100*700*600
    800*650*800
    X/Y/Z motor torque
    mm
    15/28/28
    15/28/28
    Distance from spindle face to table
    mm
    20-720
    150-950
    Distance from spindle center to column
    mm
    50-750
    100-750
    Cutting feed rate
    mm/min
    1-10
    1-10000
    X/Y/Z axis fast feed
    mm/min
    24/24/24
    24/20/20
    Spindle en taper
    mm
    BT40-150
    BT40-150
    Spindle motor power
    kw
    11
    11
    Maximum spindle speed
    rpm
    8000
    8000
    Form of Tool Magazine
    -
    disc
    Disc/Chain type
    Maximum tool diameter/weight
    mm/kg
    79-120/8
    78-120/8
    Tool change time
    sec
    2.5
    2.5
    Positioning accuracy
    mm
    0.008
    0.008
    Repeat positioning accuracy
    mm
    0.005
    0.005
    The smallest unit of positioning
    mm
    0.001
    0.001
    Weight of machine tool
    kg
    7800
    8000
    External dimensions
    mm
    3150*2550*2900
    3500*4500*2900
    Details Display:

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150

    HMC500 CNC HMC Machine T Type CNC HMC Milling Machine BT40-150
