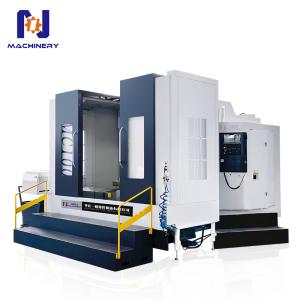

    HMC1000 Horizontal Milling CNC Inverted Structure Metal CNC Horizontal Machining

    Ask Lasest Price
    Brand Name : Zaozhuang NO.1
    Model Number : HMC1000
    Certification : CE,ISO
    Price : 120000USD
    Payment Terms : T/T
    Supply Ability : 1000 sets/month
    Delivery Time : 15 days after getting the deposit.
    • Product Details
    • Company Profile

    HMC1000 Horizontal Milling CNC Inverted Structure Metal CNC Horizontal Machining

    HMC1000 Horizontal Milling Cnc Inverted Structure Metal Horizontal Machining Center
    Product Description:
    The HMC1000 is a high-precision inverted T-type horizontal machining center, ideal for efficient part processing. Its horizontal layout and transverse worktable movement ensure stable operation. The rigid cast iron bed supports large, heavy workpieces. Equipped with a high-speed spindle and automatic tool changer, it boosts productivity. Featuring multi-axis control and a 360° rotary worktable, it enables complex, multi-sided machining.
    Standard Configuration:
    1.syntec 22ma control system
    2.Bt50 Taiwan 8000 RPM spindle
    3.Taiwan hiwin screw
    4.Taiwan hiwin 3 axis roller linear rails
    5.Taiwan OKADA 30 -Disc- atc
    6.Table: 700 x 630 mm 1 °/360 °
    Product Specification:
    Item Model
    Unit
    HMC1000
    Size of worktable
    mm
    1000*1000
    Table graduation
    mm
    1°*360
    Maximum load on table
    kg
    1500
    Number of worktables
    1
    X/Y/Z rail width
    mm
    55/55/65
    X/Y/Z screw diameter
    mm
    6312/5012/6312
    X/Y/Z Axis stroke
    mm
    1600*1000*1000
    X/Y/Z motor torque
    mm
    28/30/30
    Distance from spindle face to table
    mm
    200-1200
    Distance from spindle center to column
    mm
    120-1120
    Cutting feed rate
    mm/min
    10000
    X/Y/Z axis fast feed
    mm/min
    20/20/20
    Spindle en taper
    mm
    BT50-190
    Spindle motor power
    kw
    23
    Maximum spindle speed
    rpm
    6000
    Form of Tool Magazine
    -
    Disc/Chain type
    Maximum tool diameter/weight
    mm/kg
    118/200-25
    Tool change time
    sec
    2.5
    Positioning accuracy
    mm
    0.008
    Repeat positioning accuracy
    mm
    0.005
    The smallest unit of positioning
    mm
    0.001
    Weight of machine tool
    kg
    14500
    External dimensions
    mm
    5500*4500*3500
